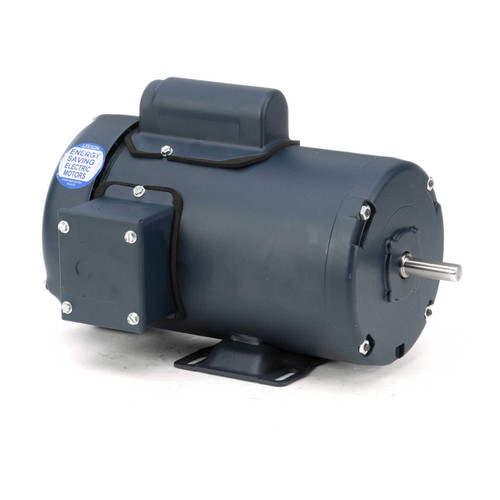

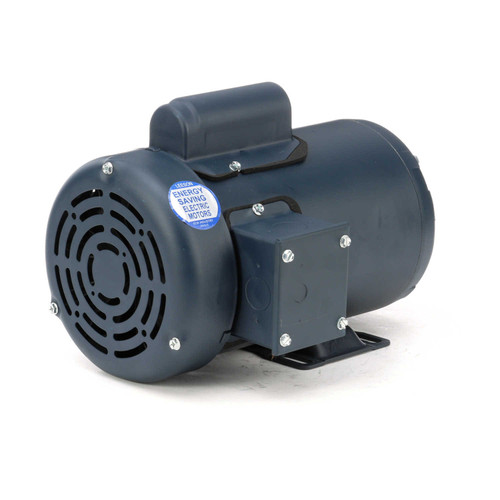

102016.00 Leeson | 1/3 hp 3450 RPM 48 Frame TEFC 115/208-230 Volts

102016.00 Leeson | 1/3 hp 3450 RPM 48 Frame TEFC 115/208-230 Volts

This Leeson 1/3 horsepower single-phase motor is designed for general-purpose applications requiring reliable and efficient operation. It is a direct replacement for similar 48 frame motors and is suitable for various industrial and HVAC uses.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 3450
• Voltage: 115/208-230 Volts, 60 Hz
• Amperage: 5.6/2.8 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 1 1/2" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It operates with Class B insulation and has a service factor of 1.15, though it does not include overload protection. The wiring diagram is conveniently located on the motor nameplate for easy reference during installation.

Warranty

1 Year Manufacturer Warranty
