The HD32P1E is a premium efficient, 1.5 horsepower electric motor designed for industrial applications requiring reliable performance. It replaces model H32P1D and features a cast iron frame with corrosion-resistant mill and chemical duty paint, making it suitable for hostile environments.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 3.9/1.9 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

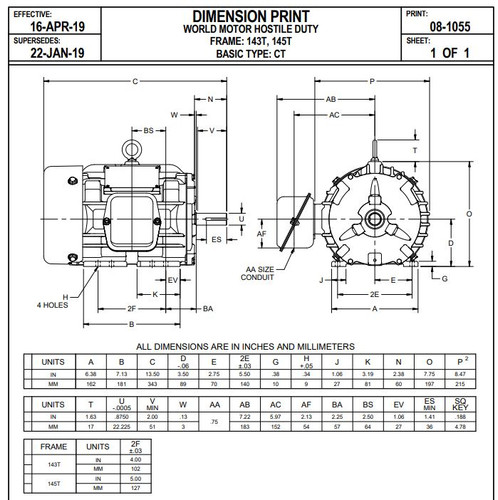

• Frame / Diameter: NEMA 143T, "C" Dimension 13.5"
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and is designed for continuous duty operation at a 40°C ambient temperature. It includes a steel fan cover, conduit box, condensation drains with plastic plugs, and a stainless steel nameplate with CE marking. The motor is suitable for variable torque applications up to 20:1 and constant torque applications up to 5:1 when used with inverter power. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• H32P1D

Warranty

1 Year Manufacturer Warranty
