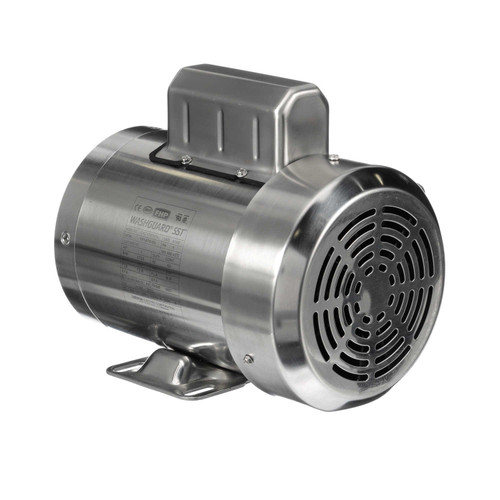

191480.00 Leeson | 1.5 hp 3600 RPM 56C 115/230V Stainless Steel w/Base

191480.00 Leeson | 1.5 hp 3600 RPM 56C Stainless Steel Motor with Base

This Leeson 1.5 hp motor operates at 3600 RPM and is designed for reliable industrial applications. It replaces Marathon N346 and 56C34WD5304 models, featuring a durable stainless steel exterior suitable for demanding environments.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 115/230V
• Amperage: 16.4/8.2 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Double sealed bearings

Product Features & Fitment

The motor includes a rigid base mount for secure installation and features a laser-etched full-fact nameplate on the motor frame for easy identification. Constructed with 300-series stainless steel on all exterior components, it offers enhanced corrosion resistance. Four quadrant drain locations are provided in each endbell to facilitate moisture drainage and extend motor life.

Cross Reference

• Marathon N346, 056C34WD5304

Warranty

1 Year Manufacturer Warranty
