119429.00 Leeson | 1.5 hp 3600 RPM 56J Frame TEFC C-Face (No Base) Expl Proof 208-230/460V

119429.00 Leeson 1.5 hp 3600 RPM 56J Frame TEFC C-Face (No Base) Explosion Proof Motor

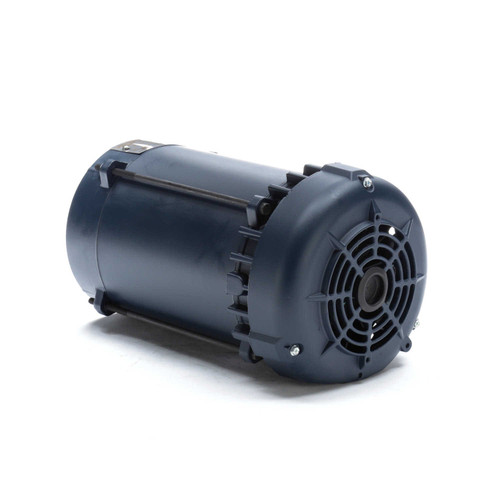

This Leeson 1.5 hp, 3600 RPM explosion proof motor is designed for industrial pump applications requiring a durable, three-phase motor. It replaces part number 116182.00 and features a 56J frame with a C-face mount and no base, suitable for hazardous environments.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 4.0/2.0 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 56J Frame
• Shaft Dimensions: 5/8" diameter threaded shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

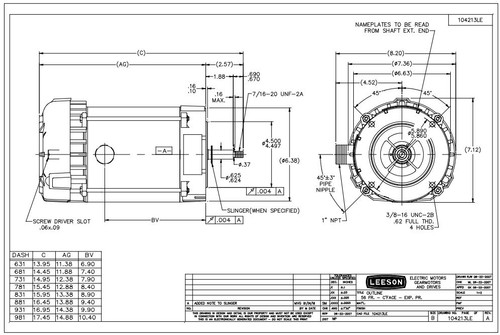

The motor features a round body with a C-face mount and no base, equipped with four threaded bolt holes spaced 5 7/8" on center across the shaft for pump mounting. It includes an explosion-rated conduit box and a wiring diagram on the motor nameplate for easy installation. The stainless steel shaft and Class B insulation provide durability and reliability in hazardous locations classified as EXP PROOF CL I GR C&D CL II GR F&G T3C.

Cross Reference

• 116182.00

Warranty

1 Year Manufacturer Warranty
