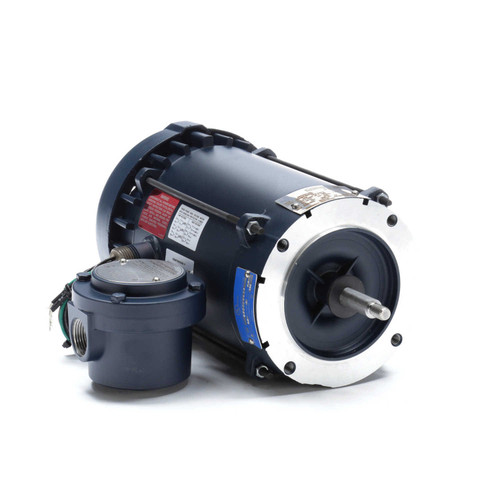

2 hp 3600 RPM 56J Frame TEFC C-Face (No Base) Expl. Proof 208-230/460V Leeson Motor # 119434

SKU:
119434
Weight:
55.00 LBS
Shipping:
Free Shipping
$651.65
  • 2 hp 3600 RPM, 5.0/2.5 amps 208-230/460 Volts Three Phase Motor
  • C-Face Mount, Round Body-No Base
  • 5/8" diameter threaded shaft
  • Service Factor: 1.0 - overload protection = Auto
  • Class B Insulation
  • Explosion rated conduit box included
  • UL Listed And CSA Certified
  • EXP PROOF CL I GR C&D CL II GR F&G T3C
  • 1 Year Manufacture Warranty

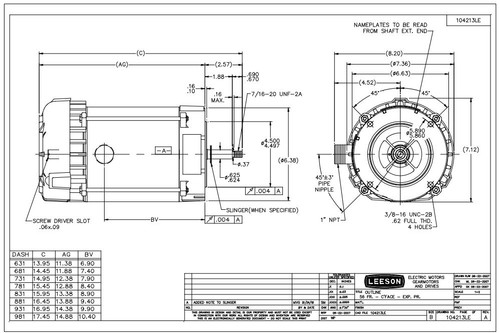

Explosion Proof. Three phase 56J frame pump motor. Stainless steel shaft. sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate.

119434.00
