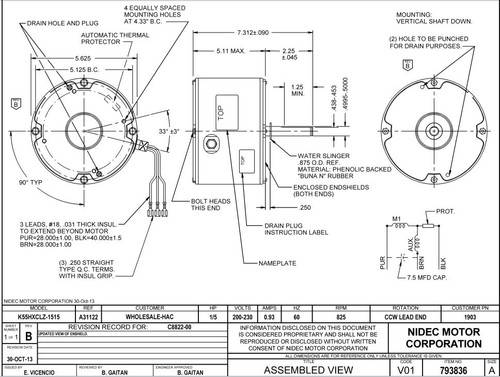

1903 Nidec | 1/5 hp 825 RPM 1-Speed 200-230V; 5.6" Condenser Motor

1903 Nidec | 1/5 hp 825 RPM 1-Speed 200-230V 5.6" Condenser Motor

This 1/5 horsepower condenser motor is designed as a direct replacement for Trane A.C. condenser fan motors, including models MOT13693 and D156744P01. It is ideal for HVAC applications requiring reliable, continuous-duty operation.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 825
• Voltage: 200-230V
• Amperage: 0.93 amps
• Enclosure: Totally Enclosed Air-Over
• Frame / Diameter: 5.6" diameter
• Shaft Dimensions: 1/2" x 2 1/4"
• Rotation: Clockwise (CW) shaft end
• Bearings: Ball bearings

Product Features & Fitment

This motor features a stud mount with shaft orientation options either up or horizontal for versatile installation. It includes permanent split capacitor design with automatic overload protection and requires a 7.5 MFD 370V capacitor (Part #7.5DV) for operation. The motor is rated for continuous duty with Class B insulation and is suitable for ambient temperatures up to 60°C. It comes with 28" leads and operates at 60 Hertz.

Cross Reference

• MOT13693, D156744P01

Warranty

1 Year Manufacturer Warranty
