sale
Leeson

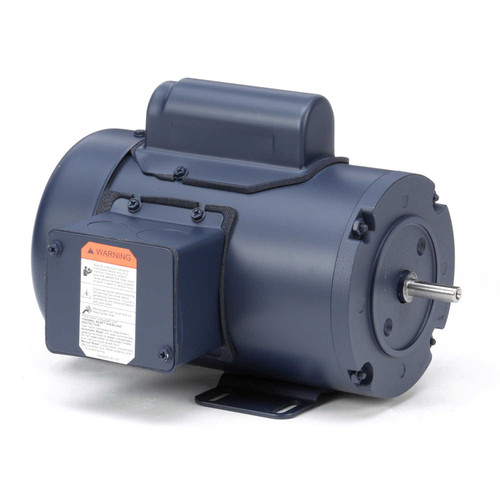

092116.00 Leeson | 1/6 hp 1725 RPM 42 Frame TEFC 115/208-230 Volts
(No reviews)
Write a Review
Write a Review
Leeson
092116.00 Leeson | 1/6 hp 1725 RPM 42 Frame TEFC 115/208-230 Volts
$575.00
$459.94
SKU
92116.00
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/6 HP
RPM
1725
Phase
Single Phase
Frame
42
Enclosure
TEFC
Hertz
60 Hz
Amperage
4.2/2.1 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 1/6 hp 1725 RPM, 4.2/2.1 amps 115/208-230 Volts 60hz. single Phase Motor

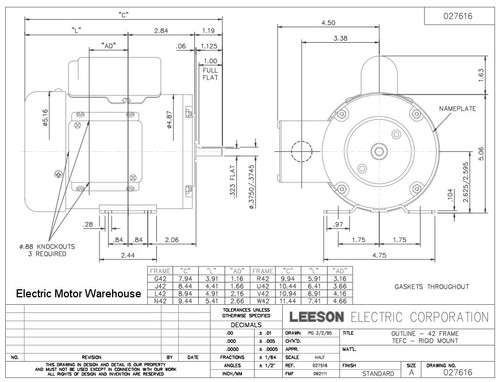

- NEMA 42 Frame Keyed Shaft 3/8" Diameter x 1 1/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- TEFC = Totally Enclosed Fan cooled.
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate.
C42C17FB1C, 092116.00, 92116.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/6 HP |
| RPM | 1725 |
| Phase | Single Phase |
| Frame | 42 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 4.2/2.1 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
