3083 Nidec | 1/7 hp 3450 RPM 1-Speed 115V, 48M Oil Burner Motor

SKU:: 3083
UPC:: 6.63E+11
Weight:: 10.00 LBS
Width:: 6.00 (in)
Height:: 6.00 (in)
Depth:: 9.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 115V
Horsepower:: 1/7 HP
RPM:: 3450
Frame:: 48M
Amperage:: 2.6 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class F
Rotation:: Reversible
Mounting:: Flange
Duty:: Continuous Duty

Current Stock:

Was: $163.30

Now: $146.04

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

3083 Nidec | 1/7 hp 3450 RPM 1-Speed 115V, 48M Oil Burner Motor

This 1/7 horsepower oil burner motor is designed for reliable, continuous duty in heating applications. It serves as a direct replacement for compatible oil burner systems requiring a 3450 RPM, single-speed motor with reversible rotation.

Key Specifications

Horsepower: 1/7 hp
RPM: 3450
Voltage: 115V
Amperage: 2.6 amps
Enclosure: Open (Totally Enclosed Non-ventilated when mounted)
Frame / Diameter: 48M Frame / 5.6" Diameter
Shaft Dimensions: 1/2" x 2.0"
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

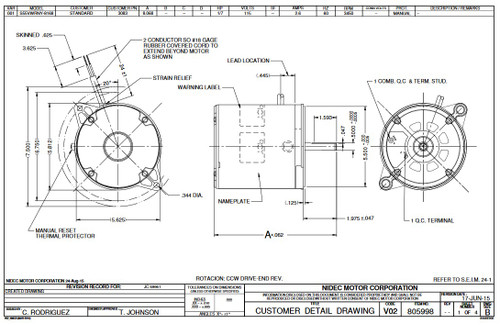

The motor features a flange mount with two screws spaced 6-3/4" apart for secure installation. It includes 24" wire leads for easy electrical connection. Constructed with Class F insulation and manual overload protection, it is rated for operation at 40°C ambient temperature and 60 Hz frequency.
