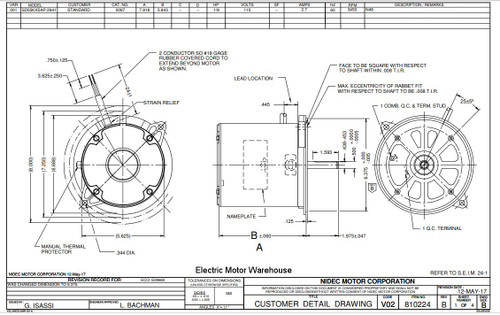

2097 Nidec | 1/8 hp 3450 RPM 1-Speed 115V, 48N Oil Burner Motor

2097 Nidec | 1/8 hp 3450 RPM 1-Speed 115V, 48N Oil Burner Motor

This 1/8 horsepower, 3450 RPM single-speed motor is designed for oil burner applications, providing reliable performance and compatibility with various heating systems. It serves as a direct replacement motor featuring a reversible rotation and durable construction.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 3450
• Voltage: 115V
• Amperage: 2.7 amps
• Enclosure: Open (Totally Enclosed Non-Ventilated when mounted)
• Frame / Diameter: 48N Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" x 2.0"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

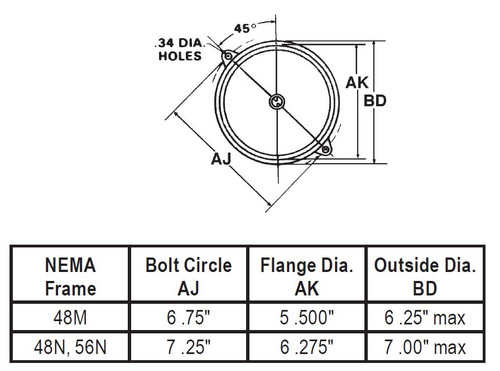

The motor features a flange mount with two screws spaced 6-3/4" apart for secure installation. It includes 24" wire leads for easy electrical connection. Built for continuous duty with manual overload protection, it operates efficiently at 60 Hertz with Class B insulation rated for 40°C ambient temperature.

Warranty

1 Year Manufacturer Warranty
