3196 Nidec | 1/8 hp 1725 RPM 1-Speed 115V, 48N Oil Burner Motor

3196 Nidec | 1/8 hp 1725 RPM 1-Speed 115V, 48N Oil Burner Motor

This 1/8 horsepower oil burner motor is designed for reliable, continuous duty in oil burner applications. It serves as a direct replacement motor featuring a reversible rotation and a 48N frame, suitable for various heating systems requiring a 1725 RPM, 115V motor.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1725
• Voltage: 115V
• Amperage: 2.4 amps
• Enclosure: Open (Totally Enclosed Non-ventilated when mounted)
• Frame / Diameter: 48N Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" x 2.0"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

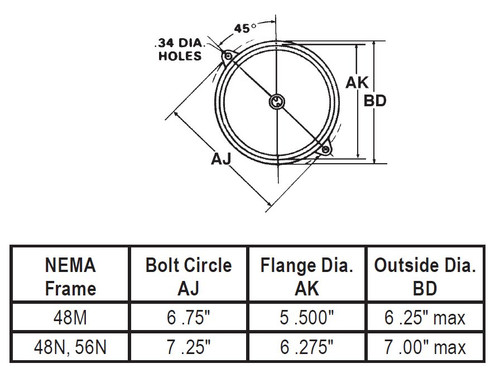

The motor features a flange mount with two screws spaced 6-3/4" apart for secure installation. It includes 24" wire leads for easy electrical connections. Designed with manual overload protection and Class A insulation, it operates efficiently at a 40°C ambient temperature and 60 Hz frequency. The motor case length measures 6.84", ensuring compatibility with standard oil burner assemblies.

Warranty

1 Year Manufacturer Warranty
