3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor
3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor
3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor
3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor
3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor
3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor

Nidec

3580 Nidec | 1/3 hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor

(No reviews) Write a Review
$456.55
$407.33
SKU 3580
Availability Subject to availability
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1725
Frame 56N
Amperage 4.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Flange
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1/3 hp 1725 RPM 1-Speed 115V 4.8 amps
  • Shaft 1/2" x 2.34"
  • Includes 5/8" shaft bushing
  • Rotation: Reversible
  • 56N Frame
  • 6.5" Diameter
  • Motor case length 8.22"
  • Ball Bearings

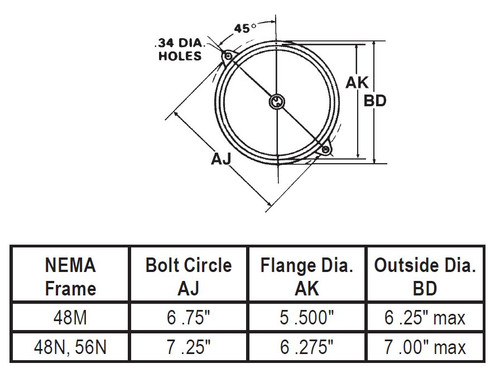

  • Flange Mount (2 screws 6-3/4" apart)
  • 20" wire leads
  • 1 Year mfg warranty

Split Phase Oil Burner Motor. Manual Overload Protection. Continuous Duty; Open Enclosure (Totally Enclosed Non-ventilated when mounted); Class B Insulation; 40C Ambient Temperature; 60 Hertz. S063SHJ7367724B.

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/3 HP
RPM 1725
Frame 56N
Amperage 4.8 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Mounting Flange
Duty Continuous Duty
!
