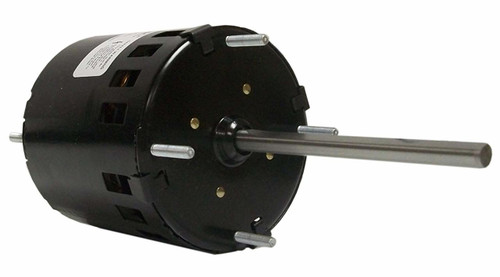

Fasco D169 Motor | 1/70 hp 1500 RPM CCW 3.3" Diameter 115 Volts

Fasco D169 Motor | 1/70 hp 1500 RPM CCW 3.3" Diameter 115 Volts

The Fasco D169 is a compact shaded pole motor designed for applications requiring low horsepower and moderate speed. It serves as a reliable replacement for models JA2C411N, JA2C411, Century 25, and U25, commonly used in HVAC and industrial equipment.

Key Specifications

• Horsepower: 1/70 hp
• RPM: 1500
• Voltage: 115 Volts
• Amperage: 0.7 amp
• Enclosure: Open Ventilation - Self Cooled, Thermally Protected
• Frame / Diameter: 3.3" Diameter
• Shaft Dimensions: 1/4" diameter x 3" length
• Rotation: Counterclockwise Shaft End (CCWSE)
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a stud mount with a bolt circle diameter of 2.85" and a motor length (excluding shaft) of 3". It includes thermally protected shading for safe operation and is designed for easy installation in compatible equipment. A shaft bushing adapter (1/4" to 5/16", part # KIT240) is available separately to accommodate different shaft sizes.

Cross Reference

• JA2C411N, JA2C411, Century 25, U25

Warranty

1 Year Manufacturer Warranty
