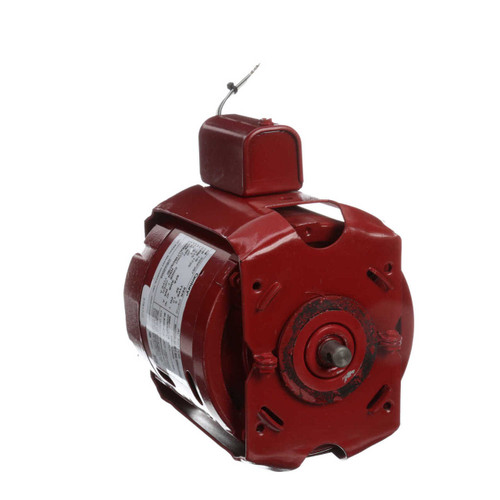

OBG2004 Century 1/8 hp 1725 RPM 115V Hot Water Circulator Motor Century # OBG2004

OBG2004 Century 1/8 hp 1725 RPM 115V Hot Water Circulator Motor

This Century hot water circulator motor is a universal replacement designed for Bell & Gossett and Armstrong pumps. It is compatible with Dayton model 4UE22 and provides reliable performance for residential and commercial hot water circulation systems.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1725
• Voltage: 115V 60Hz
• Amperage: 3.1 amps
• Shaft Dimensions: 1/2" Diameter x 5/8" Length
• Rotation: Reversible
• Bearings: Sleeve Bearings
• Frame / Diameter: Bolt Circle 4 5/8" (4.67") with 1/4" bolt holes

Product Features & Fitment

This motor features a 1.0 service factor and sleeve bearings for durable operation. Its reversible rotation and standard bolt circle make it suitable for direct replacement in existing hot water circulation pump mounts. The motor’s shaft and mounting dimensions align with common industry standards, facilitating straightforward installation.

Warranty

1 Year Manufacturer Warranty
