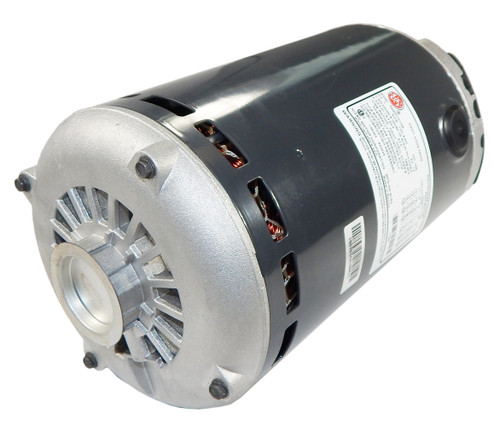

1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor
1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor
1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor
1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor
1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor
1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor

Nidec

1326 Nidec | 1 hp 1140 RPM 1-Speed 200-230/460, 190/3480V; 5.6" Blower Motor

(No reviews) Write a Review
$675.05
$602.26
SKU 1326
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Horsepower 1 HP
RPM 1140
Phase Three Phase
Hertz 50/60 Hz
Amperage 3.3/1.7 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1 hp 1140 RPM 1-Speed 200-230/460 50/60hz.
  • 3.5-3.3/1.7 amps, three phase
  • Shaft 1/2" x 5.0"
  • Rotation reversible
  • 5.6" Diameter
  • Motor case length 9.53"
  • Ball bearings
  • 1 Year mfg warranty

Three Phase Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; Application: Heat Pump, Furnace. Suggested aftermarket replacement for Dunham Bush condenser fan motor P55SYTLN1326, MM-2860-305, P055TLN1326015B, P055ZZTLN1326

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Horsepower 1 HP
RPM 1140
Phase Three Phase
Hertz 50/60 Hz
Amperage 3.3/1.7 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Duty Continuous Duty
!
