HD1P3E Nidec | 1 hp 1200 RPM 145T Frame 230/460V TEFC Nidec Electric Motor
HD1P3E Nidec | 1 hp 1200 RPM 145T Frame 230/460V TEFC Nidec Electric Motor
HD1P3E Nidec | 1 hp 1200 RPM 145T Frame 230/460V TEFC Nidec Electric Motor
HD1P3E Nidec | 1 hp 1200 RPM 145T Frame 230/460V TEFC Nidec Electric Motor

Nidec

HD1P3E Nidec | 1 hp 1200 RPM 145T Frame 230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$500.25
$446.32
SKU HD1P3E
UPC 7.86E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Frame 145T
Enclosure TEFC
Amperage 3.7/1.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 1 hp 1200 RPM, 3.7/1.8 amps 230/460 Volts Three Phase Motor
  • NEMA 145T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

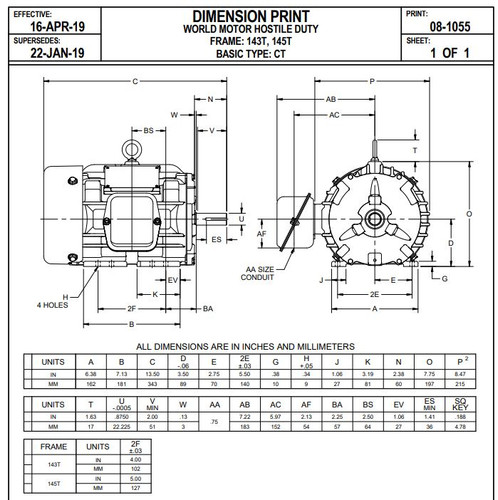

  • "C" Dimension = 13.5"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GG06, Replaces H1P3E

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Frame 145T
Enclosure TEFC
Amperage 3.7/1.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
