HD2P2E Nidec | 2 hp 1800 RPM 145T Frame 230/460V TEFC Nidec Electric Motor

HD2P2E Nidec | 2 hp 1800 RPM 145T Frame 230/460V TEFC Nidec Electric Motor

The HD2P2E is a premium efficient, 2 horsepower electric motor designed for industrial applications requiring reliable performance and durability. It replaces model H2P2D and is suitable for both mill and chemical duty environments.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460 V Three Phase
• Amperage: 5.3/2.7 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

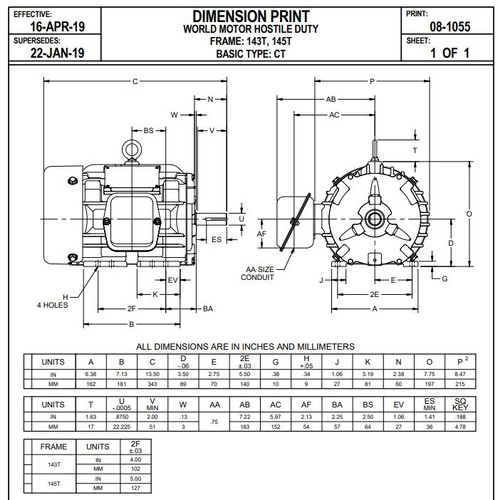

• Frame / Diameter: NEMA 145T, "C" Dimension 13.5"
• Shaft Dimensions: Keyed Shaft 7/8" Diameter x 2 1/4"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

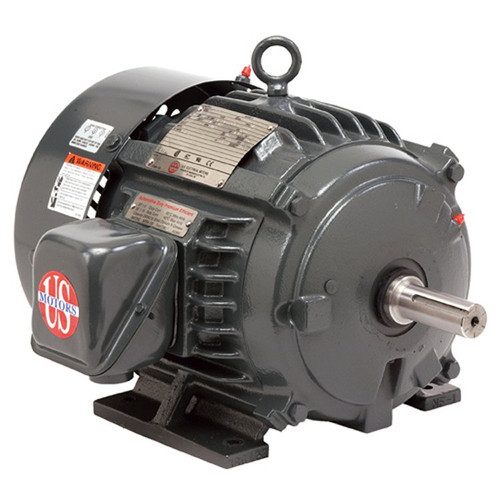

This motor features a rigid base mount and a cast iron frame with corrosion-resistant mill and chemical duty paint. It includes a stainless steel nameplate with CE marking, zinc-plated hardware, steel fan cover, and conduit box with condensation drains sealed by plastic plugs. Suitable for continuous duty operation at 40°C ambient temperature, it supports 20:1 variable torque and 5:1 constant torque when used with inverter power. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• H2P2D

Warranty

1 Year Manufacturer Warranty
