sale
Marathon

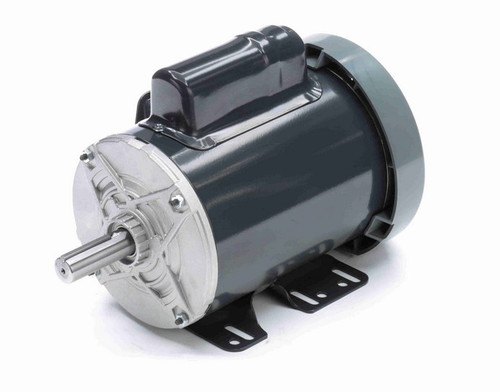

C295 Marathon 1 hp 1800 RPM 143T Frame 115/230V Totally Enclosed Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
C295 Marathon 1 hp 1800 RPM 143T Frame 115/230V Totally Enclosed Marathon Electric Motor
$475.99
$389.95
SKU
MC295
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
1 HP
RPM
1800
Phase
Single Phase
Frame
143T
Enclosure
TEFC
Hertz
60 Hz
Amperage
13.2/6.6 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 1 hp 1800 RPM, 13.2/6.6 amps 115/230 Volts 60hz. Capacitor Start Motor
- NEMA 143T Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled, 5KC49TN0033
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 143T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 13.2/6.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
