Marathon

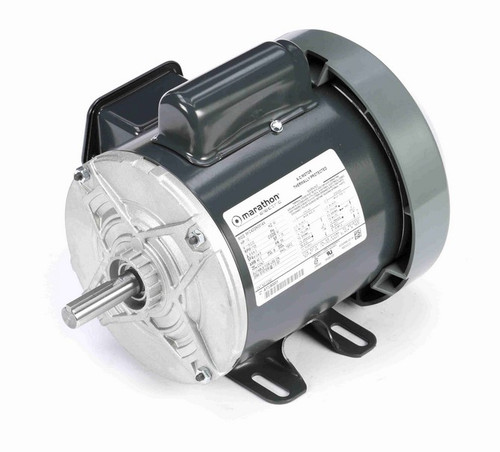

C262 Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
C262 Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor
$482.89
$399.95
SKU
C262
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/230V
Horsepower
1/2 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
TEFC
Hertz
60 Hz
Amperage
8.6/4.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
C262 Marathon 1/2 hp 1800 RPM 56 Frame 115/230V Totally Enclosed Marathon Electric Motor
The Marathon C262 is a general-purpose, single-phase electric motor designed for a wide range of industrial applications. It replaces Leeson A4C17FH29B (102908.00) and features a totally enclosed fan-cooled (TEFC) design for reliable operation in various environments.
Key Specifications
- Horsepower: 1/2 hp
- RPM: 1800
- Voltage: 115/230 V, 60 Hz
- Amperage: 8.6/4.3 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This capacitor start motor includes a rigid base mount for stable installation and features Class B insulation for enhanced durability. The motor is equipped with an auto overload protection system and a wiring diagram located on the nameplate for ease of setup.
Cross Reference
- Leeson A4C17FH29B, 102908.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/230V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 8.6/4.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
- Leeson A4C17FH29B, 102908.00
