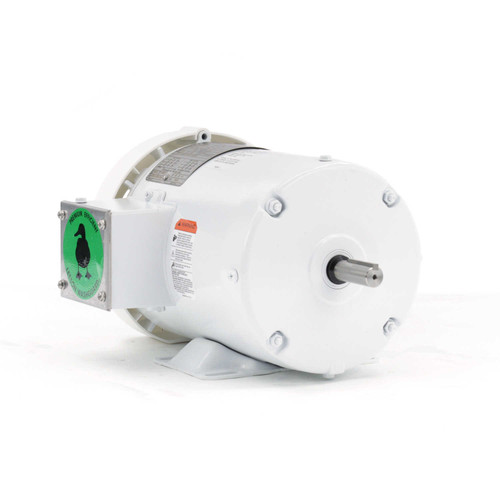

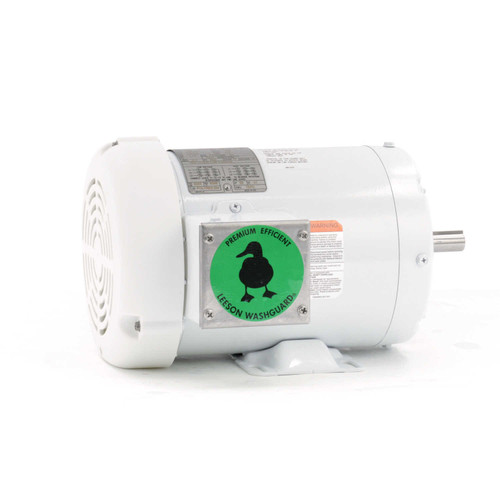

1 hp 1800 RPM 56 Frame 208-230/460V TEFC Wash Down Duty Leeson Electric Motor # 119475

SKU:
119475
Weight:
57.00 LBS
Shipping:
Free Shipping
$481.38
  • 1 hp 1725 RPM, 3.2/1.6 amps 208-230/460 Volts 60hz. Three Phase Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Leeson Washguard Motor -Rigid Base
  • Service Factor: 1.15 - overload protection = None - Class F Insulation
  • TEFC = Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.

C6T17WB18A, 119475.00
