112428.00 Leeson | 3/4 hp 1800 RPM 56 Frame 208-230/460 Volts Wash Down Duty

112428.00 Leeson 3/4 hp 1800 RPM 56 Frame Wash Down Duty Motor

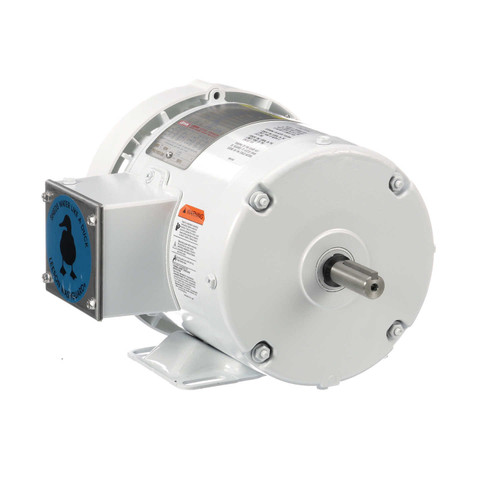

This Leeson 3/4 hp, 1800 RPM three-phase motor is designed for wash down duty applications, offering reliable performance in moisture-prone environments. It replaces the Marathon N320 and 56T17W5340 models, making it ideal for industrial and commercial HVAC and motor systems requiring durable, moisture-resistant motors.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 208-230/460 Volts
• Amperage: 2.8/1.4 Amps
• Frame / Diameter: NEMA 56 Frame

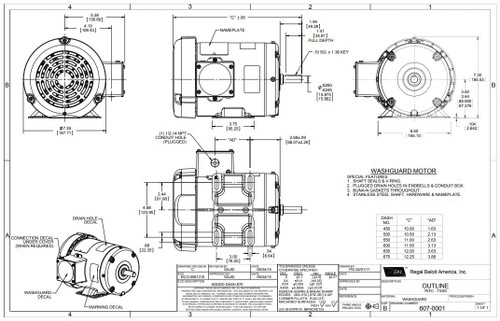

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Enclosure: Washguard (Rigid Base)

Product Features & Fitment

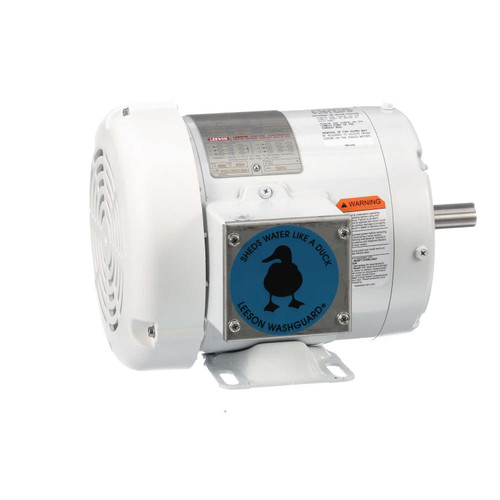

This motor features Leeson's original moisture-shedding "duck" design with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture resistance. The motor utilizes the IRIS insulation system and Class F insulation for thermal protection. Installation requires a rigid base mount consistent with NEMA 56 frame standards.

Cross Reference

• Marathon N320, 056T17W5340

Warranty

1 Year Manufacturer Warranty
