T1102 Century 1 hp 3600 RPM 1-Phase 56J Frame ODP (no base) 115/230V Century Jet Pump Motor # T1102

T1102 Century 1 hp 3600 RPM 1-Phase 56J Frame ODP Jet Pump Motor

This Century T1102 motor is a 1 horsepower, 3600 RPM, single-phase jet pump motor designed for general industrial and pump applications. It is not suitable as a replacement for swimming pool pump motors.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 115/230V, 60 Hz
• Amperage: 12.4/6.2 amps
• Enclosure: Open Drip Proof (ODP)

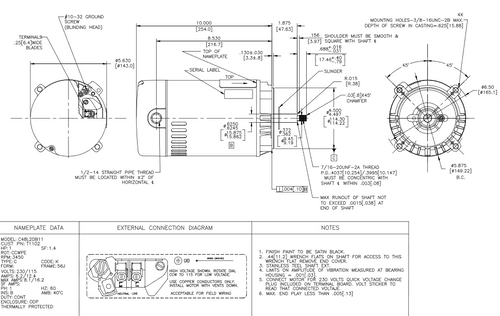

• Frame / Diameter: NEMA 56J frame, C-face
• Shaft Dimensions: Threaded shaft, 5/8" diameter x 1 7/8" length
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball bearings

Product Features & Fitment

The motor features a capacitor start design with a service factor of 1.4 and automatic overload protection. It includes four threaded bolt holes on the motor face for mounting pumps or gear heads, spaced 5 7/8" on center across the shaft. The motor does not include a base and has a wiring diagram located on the nameplate for easy installation.

Cross Reference

• swimming pool pump motors
• Threaded shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. T1102

Warranty

1 Year Manufacturer Warranty
