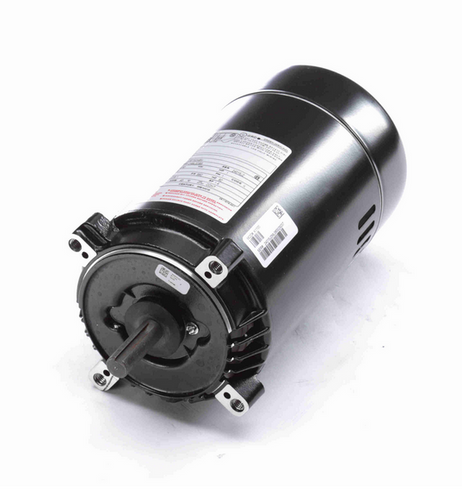

K1100 Century 1 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1100

K1100 Century 1 hp 3600 RPM 1-Phase 56C Frame ODP Jet Pump Motor

This 1 horsepower, 3600 RPM single-phase motor is designed for pool and spa jet pump applications requiring a C-face mount. It serves as a direct replacement motor with a robust open drip proof (ODP) enclosure for reliable operation.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 115/230V
• Amperage: 12.4/6.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C frame, C-face
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Counterclockwise (CCW) pump end
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a capacitor start and a service factor of 1.4 with automatic overload protection. It includes four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump or gear head mounting. The motor does not include a base and comes with a wiring diagram on the nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
