K1050 Century 1/2 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1050

SKU:: K1050
UPC:
Weight:: 17.00 LBS
Width:: 10.00 (in)
Height:: 10.00 (in)
Depth:: 16.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 1/2 HP
RPM:: 3600
Phase:: Single Phase
Frame:: 56C
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 8.6/4.3 Amps
Bearings:: Ball Bearings
Service Factor:: 1.8
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $264.85

Now: $224.48

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

K1050 Century 1/2 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Century Jet Pump Motor # K1050

This Century jet pump motor is designed for pool and spa pumps requiring a single-phase electric motor with a C-face mount. It replaces compatible motors and is ideal for applications needing reliable, capacitor-start performance.

Key Specifications

Horsepower: 1/2 hp
RPM: 3450 RPM
Voltage: 115/230 V, 60 Hz
Amperage: 8.6/4.3 A
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: NEMA 56C frame, C-face

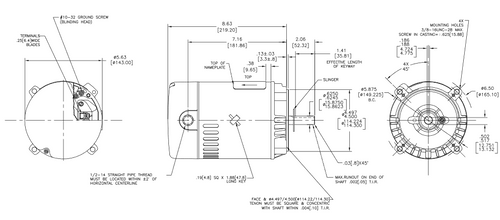

Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Counterclockwise (CCW) pump end
Bearings: Ball bearings

Product Features & Fitment

The motor features a capacitor start and an automatic overload protection system with a service factor of 1.8. It includes a keyed shaft and four threaded bolt holes spaced 5 7/8" on center across the shaft for secure pump or gear head mounting. The motor does not include a base and comes with a wiring diagram on the nameplate for easy installation.
