K1030 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Jet Pump Motor

K1030 Century 1/3 hp 3600 RPM 1-Phase 56C Frame ODP (no base) 115/230V Jet Pump Motor

The K1030 Century motor is a 1/3 horsepower, single-phase electric motor designed for pool and spa jet pump applications. It features a capacitor start and is suitable for replacing motors requiring a NEMA 56C frame with a C-face mount.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 3600
• Voltage: 115/230 V
• Amperage: 3.4/6.8 A
• Enclosure: Open Drip Proof (ODP)

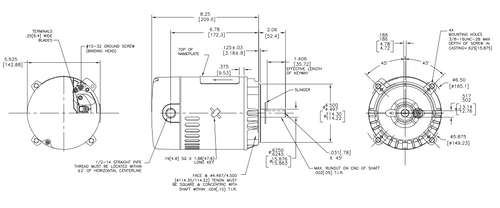

• Frame / Diameter: NEMA 56C frame, C-face
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Counterclockwise (pump end)
• Bearings: Ball bearings

Product Features & Fitment

This motor includes a keyed shaft and four threaded bolt holes on the face for mounting a pump or gear head, with bolt holes spaced 5 7/8" on center across the shaft. It features a service factor of 1.8 and automatic overload protection. The motor does not include a base and has Class B insulation. Wiring details are provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
