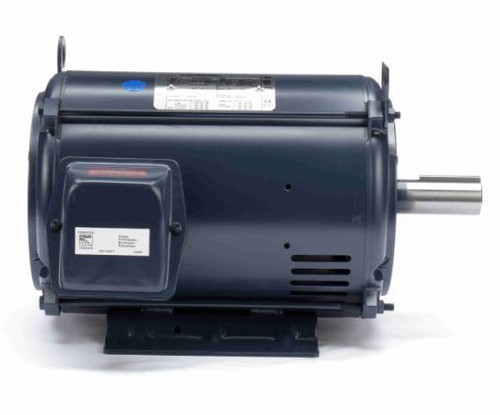

GT0058 Marathon 10 hp 1200 RPM 256T Frame 230/460V Open Drip Marathon Electric Motor

SKU:
GT0058
Availability:
LIMITED STOCK
Weight:
285.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $1,772.10
Now: $1,506.00
Adding to cart… The item has been added
  • 10 hp 1200 RPM, 25.6/12.8 amps 230/460 Volts 60hz. Three Phase Motor

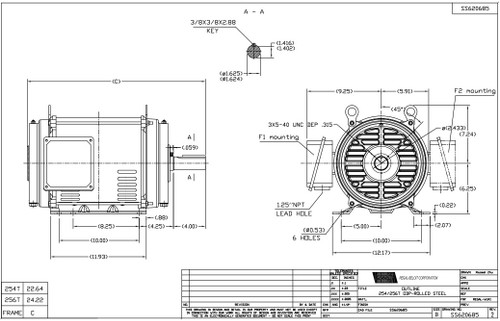

  • NEMA 256T Frame Keyed Shaft 1 5/8 " Diameter x 4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • Rolled Steel Construction
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

Marathon Model: 256TTDBD6076
Replaces Leeson C256T11DB45D, 170146.60, 199697.00, 199697, B199697.00, B199697
Replaces Century E497, E497M2
Dayton 454X52
