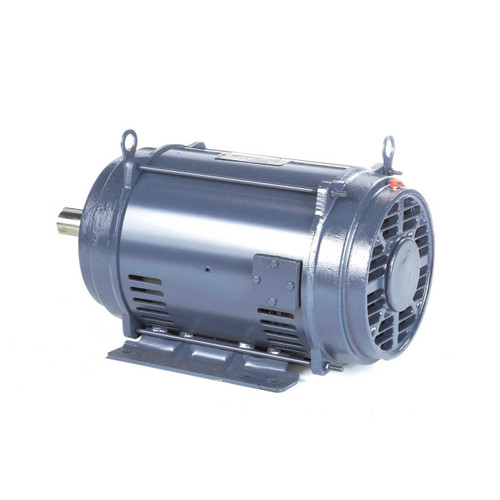

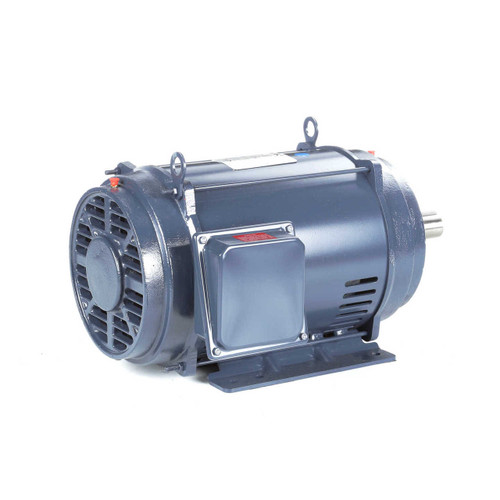

GT0064 Marathon 25 hp 3600 RPM 256T Frame 230/460V Open Drip Marathon Electric Motor

GT0064 Marathon 25 hp 3600 RPM 256T Frame 230/460V Open Drip Marathon Electric Motor

This Marathon 25 horsepower, three-phase electric motor operates at 3600 RPM and is designed for general-purpose industrial applications. It is a direct replacement for Leeson models 170034.60, 199704.00, B199704, Century E495 and E495M2, and Dayton 454X57 motors.

Key Specifications

• Horsepower: 25 hp
• RPM: 3600
• Voltage: 230/460 V
• Amperage: 59.5/29.7 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 256T Frame
• Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft to ensure proper coupling with driven equipment. The wiring diagram is conveniently located on the motor nameplate for easy electrical hookup. Class F insulation provides reliable thermal protection, and the motor is designed for 60 Hz operation.

Cross Reference

• Leeson 170034.60, 199704.00, B199704
• Replaces Century E495, E495M2
• Dayton 454X57

Warranty

1 Year Manufacturer Warranty
