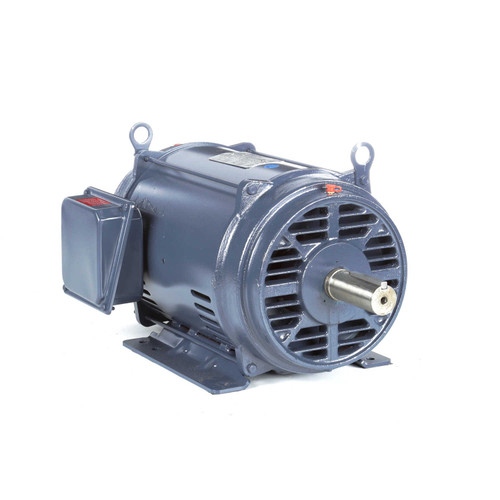

GT0062 Marathon 20 hp 1800 RPM 256T Frame 230/460V Open Drip Marathon Electric Motor

GT0062 Marathon 20 hp 1800 RPM 256T Frame 230/460V Open Drip Marathon Electric Motor

This general-purpose Marathon electric motor delivers 20 horsepower at 1800 RPM and is designed for three-phase industrial applications. It replaces Leeson models 170006.60, B199702.00, 199702.00, and Dayton 454X55, providing reliable performance in various equipment setups.

Key Specifications

• Horsepower: 20 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 48.5/24.3 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 256T Frame
• Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a wiring diagram on the nameplate for easy electrical connections. Its Class F insulation and 1.15 service factor support durability under typical industrial loads. The open drip proof enclosure allows for ventilation while protecting internal components from moisture and debris.

Cross Reference

• Leeson 170006.60, B199702.00, 199702.00; Dayton 454X55

Warranty

1 Year Manufacturer Warranty
