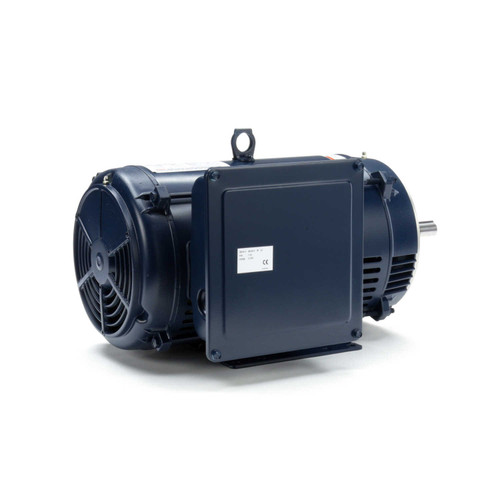

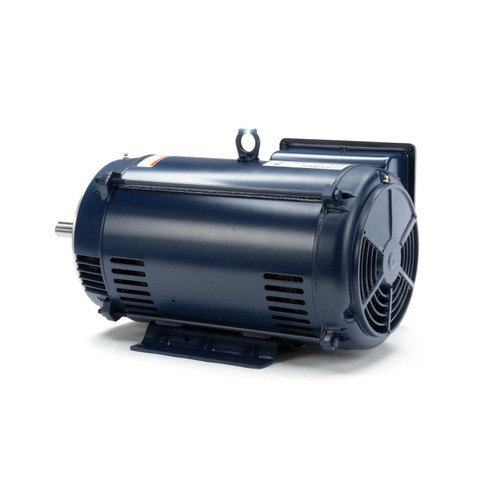

Z413 Marathon 10 hp 1730 RPM 215JM Frame 230V ODP Marathon Close Couple Motor

SKU:: Z413
UPC:
Availability:: LIMITED STOCK
Weight:: 159.00 LBS
Width:: 30.00 (in)
Height:: 24.00 (in)
Depth:: 20.00 (in)
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 230V
Horsepower:: 10 HP
RPM:: 1730
Phase:: Single Phase
Frame:: 215JM
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 44.0 Amps
Insulation Class:: Class F
Mounting:: Rigid Base
Duty:: continuous duty

Current Stock:

Was: $2,406.95

Now: $2,060.80

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

Z413 Marathon 10 hp 1730 RPM 215JM Frame 230V ODP Marathon Close Couple Motor

This Marathon close-coupled motor is designed for continuous duty service on close-coupled pumps, replacing similar models such as the Dayton 26ZY41. It is ideal for industrial applications requiring reliable, single-phase motor performance.

Key Specifications

Horsepower: 10 hp
RPM: 1730
Voltage: 230V
Amperage: 44.0 amps
Enclosure: Open Drip Proof (ODP)
Frame / Diameter: 215JM
Rotation: Single Phase

Product Features & Fitment

The motor features a rigid base and a NEMA JM pump shaft, facilitating straightforward installation on close-coupled pumps. It includes a capacitor start and induction run design with Class F insulation and a service factor of 1.15. Wiring diagrams are provided on the motor nameplate for ease of setup.
