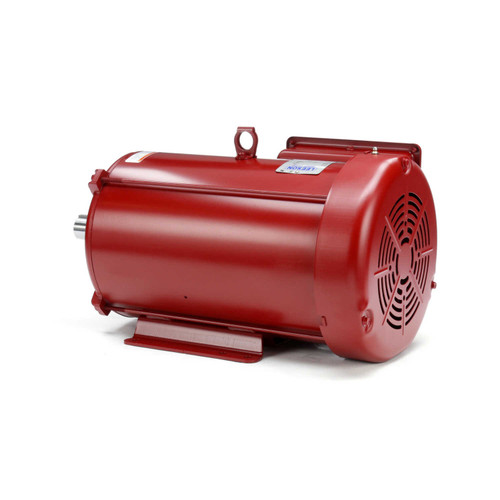

140706.00 Leeson | 10 hp 1740 RPM 215T Frame TEFC (Farm Duty) 230 Volts

140706.00 Leeson | 10 hp 1740 RPM 215T Frame TEFC (Farm Duty) 230 Volts

This Leeson 10 hp, 1740 RPM single-phase motor is designed for demanding farm duty and industrial applications. It serves as a reliable replacement motor for woodworking machines and other equipment exposed to dust, dirt, and oil.

Key Specifications

• Horsepower: 10 hp
• RPM: 1740
• Voltage: 230V, 60 Hz
• Amperage: 40.0 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 215T Frame, flat rigid base mount
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This farm duty motor features manual overload protection and a service factor of 1.15 for enhanced durability. It includes double sealed bearings with Exxon grease rated for -20°F to +350°F, a gasketed junction box and capacitor covers, plus a rubber boot over the reset button for added protection. The motor mounts via a standard NEMA 215T flat base with six bolt holes. Due to its weight (155 lbs), this motor ships via freight truck and cannot be delivered directly to residential addresses.

Warranty

• Dimensional Drawing
