131542.00 Leeson | 3 hp 1740 RPM 184T Frame TEFC (Farm Duty) 230 volts

131542.00 Leeson | 3 hp 1740 RPM 184T Frame TEFC (Farm Duty) 230 volts

This Leeson 3 hp, 1740 RPM single-phase motor is designed for demanding agricultural and industrial applications. It replaces Century models K214, K214M2, and K205, offering high starting torque and durability for equipment exposed to harsh environments such as woodworking and farm machinery.

Key Specifications

• Horsepower: 3 hp
• RPM: 1740
• Voltage: 230 V
• Amperage: 19.0 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 184T Frame
• Shaft Dimensions: 1 1/8" diameter x 2 3/4" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This farm duty motor features a flat rigid base mount with six mounting holes for standard NEMA 184T installation. It includes manual overload protection and a gasketed junction box and capacitor covers for enhanced durability. The motor is equipped with double-sealed bearings lubricated with Exxon grease, suitable for temperature ranges from -20°F to +350°F. A rubber boot protects the reset button, adding extra protection in dusty or oily environments.

Please note this motor ships via freight truck and cannot be delivered to residential addresses. It is recommended for shipment to business or commercial locations.

Cross Reference

• Century K214, K214M2, K205

Warranty

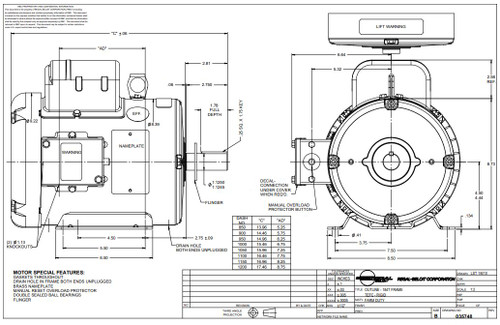

• Dimensional Drawing
