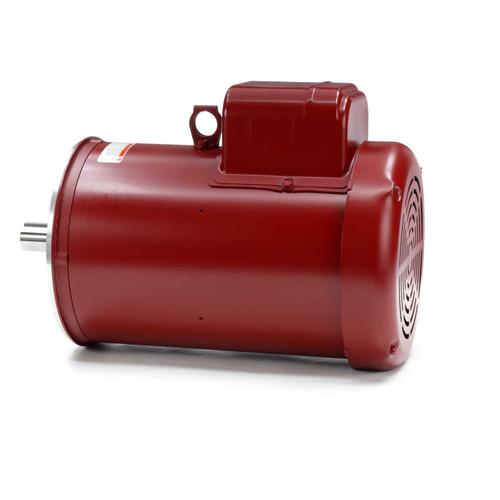

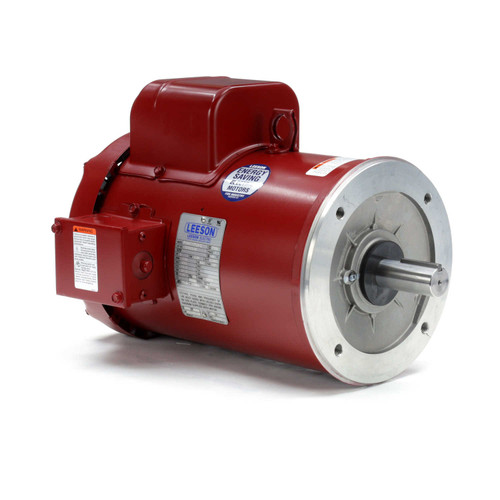

131603.00 Leeson | 3 hp 1740 RPM 184TC Frame (Farm Duty) 230 Volts

131603.00 Leeson | 3 hp 1740 RPM 184TC Frame (Farm Duty) 230 Volts

This Leeson 3 hp, 1740 RPM Farm Duty motor is designed for heavy-duty applications exposed to harsh environments such as sawdust, dirt, and oil. It replaces standard motors with enhanced durability and is ideal for agricultural and industrial machinery requiring reliable high-torque performance.

Key Specifications

• Horsepower: 3 hp
• RPM: 1740
• Voltage: 230 Volts
• Amperage: 19.0 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 184TC
• Shaft Dimensions: 1 1/8" Diameter x 2 3/4" Length
• Rotation: Reversible
• Bearings: Double sealed with Exxon grease

Product Features & Fitment

This round body motor features a keyed shaft and manual overload protection to prevent damage during overload conditions. It mounts using a standard NEMA "C" face with no rigid base, making it suitable for direct face mounting. The motor includes a gasketed junction box and capacitor covers, plus a rubber boot over the reset button for added protection. It is built with Class F insulation and a service factor of 1.15, ensuring durability in demanding farm duty environments with temperature ranges from -20°F to +350°F.

Warranty

1 Year Manufacturer Warranty
