140707.00 Leeson | 7.5 hp 1740 RPM 215T Frame TEFC (Farm Duty) 230 Volts

140707.00 Leeson | 7.5 hp 1740 RPM 215T Frame TEFC (Farm Duty) 230 Volts

This Leeson 7.5 hp single-phase motor is designed for demanding agricultural and industrial applications. It replaces standard motors where high starting torque and protection against harsh environments are required, making it ideal for woodworking machines and other equipment exposed to dust, dirt, and oil.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1740
• Voltage: 230 V
• Amperage: 32.0 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 215T Frame
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This farm duty motor features a flat rigid base mount with six mounting holes for secure installation. It includes manual overload protection and a gasketed junction box and capacitor covers for enhanced durability. The motor is equipped with double-sealed bearings lubricated with Exxon grease, suitable for temperature ranges from -20°F to +350°F. A rubber boot protects the reset button, providing additional environmental protection. This motor ships by truck and is recommended for delivery to a business address.

Warranty

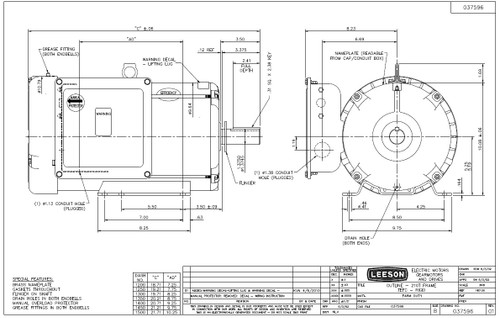

• Dimensional Drawing
