140155.00 Leeson | 7.5 hp 1740 RPM 215T Frame 230 Volts Open Drip

140155.00 Leeson | 7.5 hp 1740 RPM 215T Frame 230 Volts Open Drip Motor

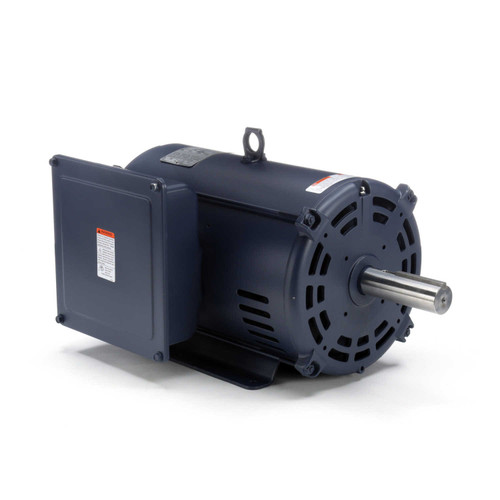

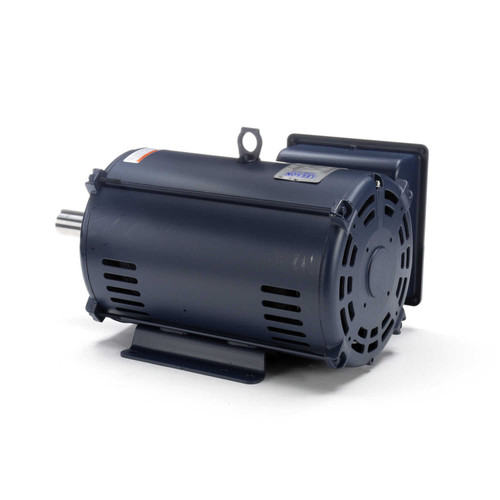

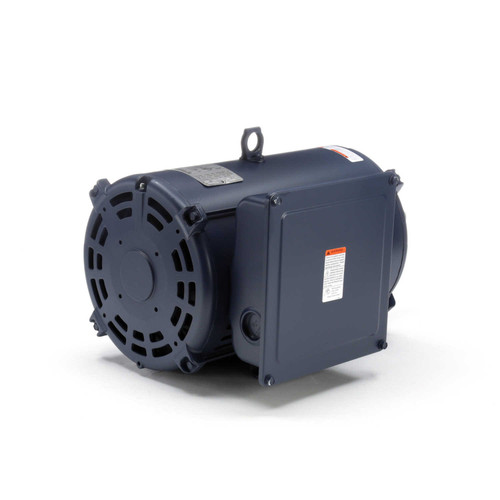

This Leeson 7.5 hp single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces Century models V305 and V305M2 and features a rigid base mount with a keyed shaft for versatile installation.

Key Specifications

• Horsepower: 7.5 hp
• RPM: 1740
• Voltage: 230 Volts
• Amperage: 36.0 Amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 215T
• Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a rigid base mount for stable installation and a keyed shaft to ensure secure coupling with driven equipment. It is equipped with Class F insulation and ball bearings for durability and smooth operation. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.

Cross Reference

• Century V305, V305M2. Model C215K17DB2F; 140155.00

Warranty

1 Year Manufacturer Warranty
