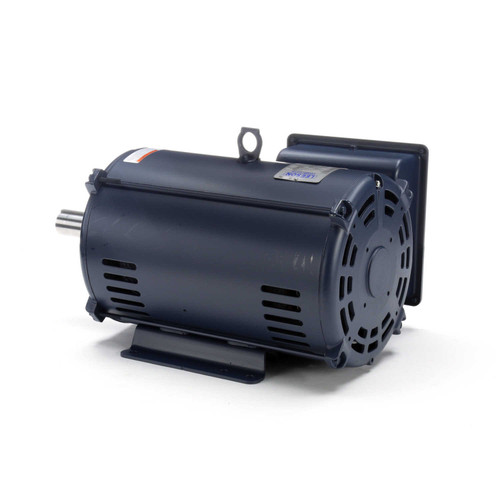

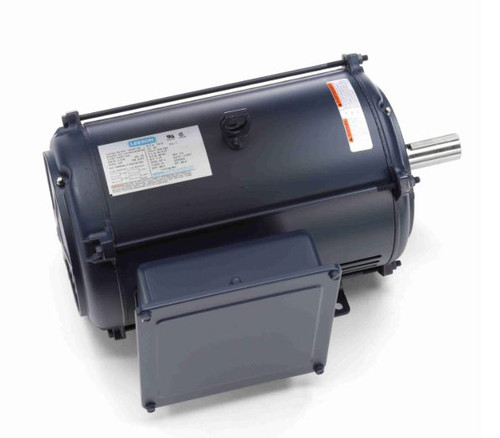

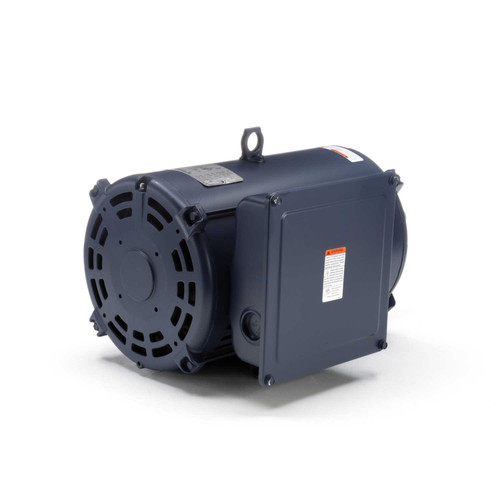

10 hp 1725 RPM 215TZ Frame 230V Open Drip Leeson Electric Motor # 141430

SKU:
141430
Manufacturer
Leeson
Weight:
195.00 LBS
Shipping:
Calculated at Checkout
$1,169.00
  • 10 hp 1725 RPM, 39.0 amps 230 Volts 60hz. single Phase Motor

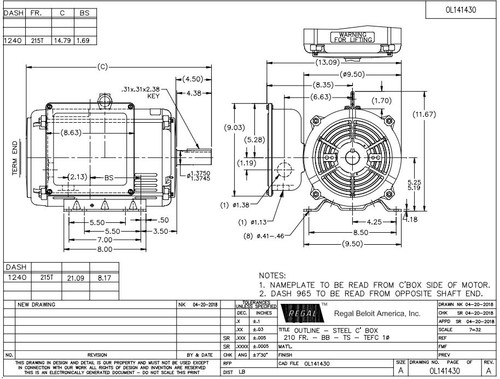

  • NEMA 215TZ Frame Keyed Shaft 1 3/8" Diameter x 4 3/8" Long
  • Open Drip Proof
  • Service Factor: 1.25 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate.

Replaces Century V303M2; Model C215K17DB4G; 141430.00
