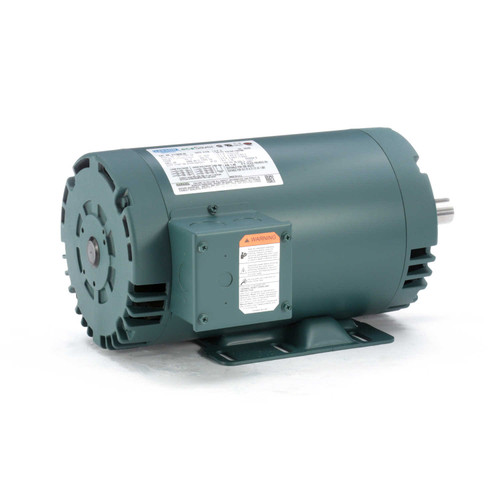

2 hp 1725 RPM 56HZ (143T) Frame 230/460V Open Drip Leeson Electric Motor # E115826

SKU:
E115826
Weight:
46.00 LBS
Shipping:
Free Shipping
$426.05
  • 2 hp 1725 RPM, 5.8/2.9 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 56HZ Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C6T17DB115B, E115826.00
