Leeson

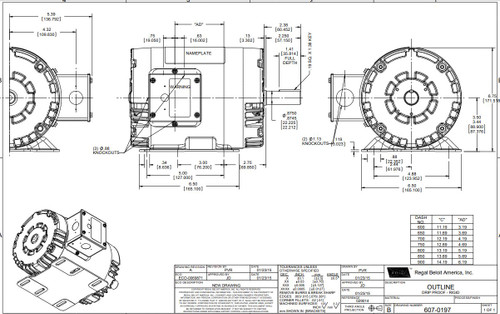

E115825.00 Leeson | 1.5 hp 1725 RPM 56HZ (143T) Frame 208-230/460 Volts Open Drip
(No reviews)
Write a Review
Write a Review
Leeson
E115825.00 Leeson | 1.5 hp 1725 RPM 56HZ (143T) Frame 208-230/460 Volts Open Drip
$711.85
$603.75
SKU
E115825
UPC
6.63E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1-1/2 HP
RPM
1725
Phase
Three Phase
Frame
208
Enclosure
ODP
Hertz
60 Hz
Amperage
4.8/2.4 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 1.5 hp 1725 RPM, 4.8/2.4 amps 208-230/460 Volts 60hz. Three Phase Motor
- NEMA 56HZ Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
C6T17DB114B; E115825.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1-1/2 HP |
| RPM | 1725 |
| Phase | Three Phase |
| Frame | 208 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.8/2.4 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
1 hp 1725 RPM, 3.2/1.6 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 56HZ Frame Keyed Shaft 7/8" Diameter x 2 1/4"
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base Mount -...
$610.65
$517.50
sale
Add to Cart
The item has been added

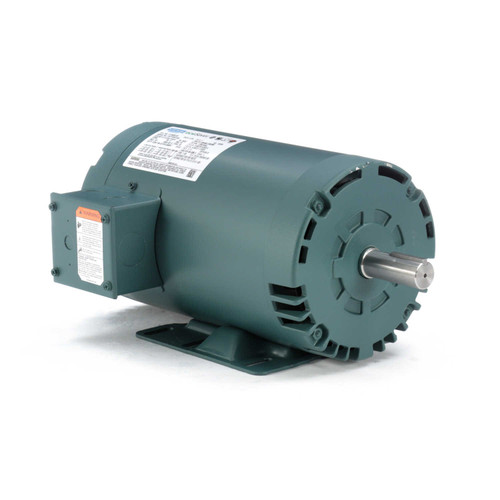

E115826.00 Leeson | 2 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
