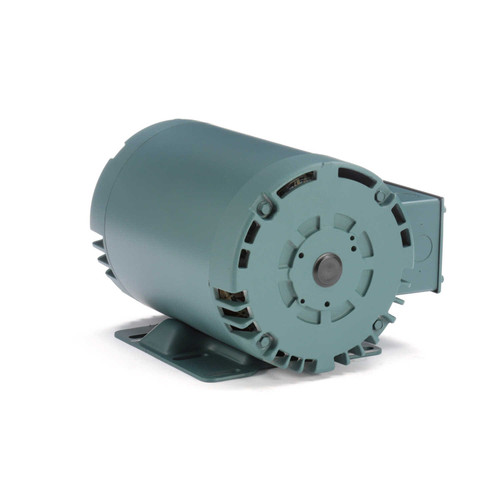

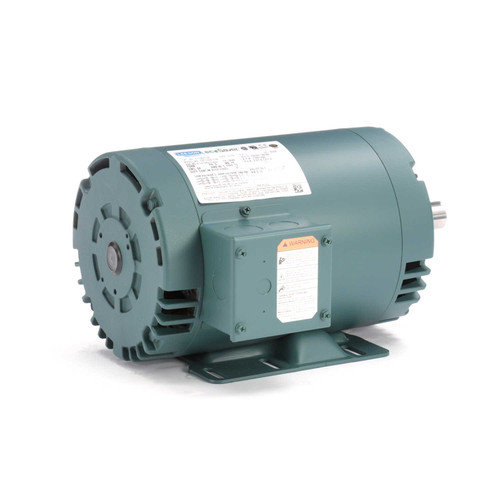

E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip
E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip

Leeson

E115827.00 Leeson | 1 hp 1725 RPM 56HZ (143T) Frame 230/460 Volts Open Drip

(No reviews) Write a Review
$610.65
$517.50
SKU E115827
UPC 6.63E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1 HP
RPM 1725
Phase Three Phase
Frame 230
Enclosure ODP
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1725 RPM, 3.2/1.6 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 56HZ Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

C6T17DB117B, E115827.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1 HP
RPM 1725
Phase Three Phase
Frame 230
Enclosure ODP
Hertz 60 Hz
Amperage 3.2/1.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
