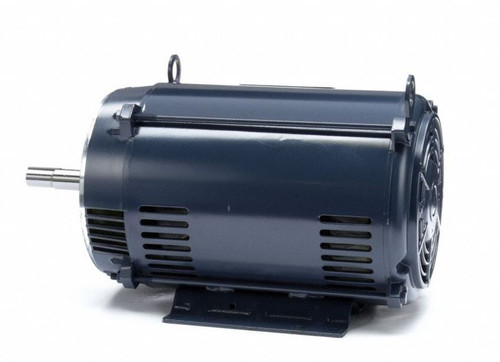

GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor
GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor

Marathon

GT0419A Marathon 10 hp 1800 RPM 215JM Frame ODP 230/460V Marathon Close Couple Motor

(No reviews) Write a Review
$1,609.54
$1,247.75
SKU MGT0419
UPC 7.23E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1800
Phase Three Phase
Frame 215JM
Enclosure ODP
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
Adding to cart… The item has been added
Description
  • 10 hp 1800 RPM 215JM Frame, 25.4/12.7 amps 230/460V 60hz. Three Phase Motor
  • Close Coupled Pump Motor - Rigid Base
  • Open Drip Proof (ODP) - Service Factor = 1.15
  • Class F Insulation, No Overload Protection
  • Continuous duty
  • One Year Manufacture Warranty

Close Coupled Pump Motor. Designed for continuous duty service on close Coupled pumps. Motor has rigid base. Wiring diagram on motor name plate.

215TTDBD6032; Replaces Leeson Model 199777.00, 1999777, B199977.00, B199777; Dayton 26ZY08

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1800
Phase Three Phase
Frame 215JM
Enclosure ODP
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Insulation Class Class F
Mounting Rigid Base
Duty Continuous duty
!
