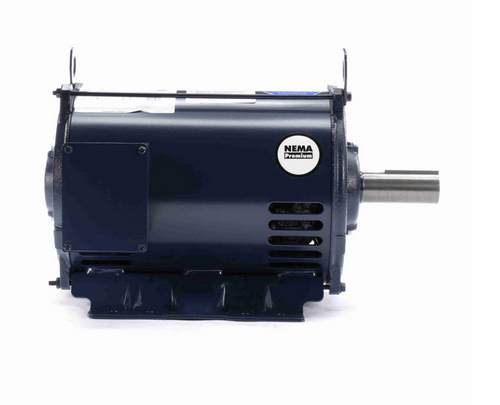

E397M2 Century 10 hp 1800 RPM 3-Phase 215T Frame ODP (rigid base) 230/460V Century Motor # E397M2

E397M2 Century 10 hp 1800 RPM 3-Phase 215T Frame ODP (Rigid Base) 230/460V Motor

This Century E397M2 motor is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It is ideal for replacing or upgrading existing 10 hp motors with a 215T frame and rigid base mount.

Key Specifications

• Horsepower: 10 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 25.2/12.6 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 215T
• Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mounting configuration for stable installation and easy alignment. The keyed shaft ensures secure coupling with compatible equipment. Wiring diagrams are provided on the motor nameplate to facilitate correct electrical connections. The motor is designed with Class F insulation for enhanced thermal protection.

Warranty

1 Year Manufacturer Warranty
