140685.00 Leeson | 10 hp 3450 RPM 215T Frame TEFC 208-230 Volts

140685.00 Leeson | 10 hp 3450 RPM 215T Frame TEFC 208-230 Volts

This Leeson 10 hp single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces similar 10 hp motors and is suitable for various industrial and HVAC equipment.

Key Specifications

• Horsepower: 10 hp
• RPM: 3450
• Voltage: 208-230 Volts
• Amperage: 41.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

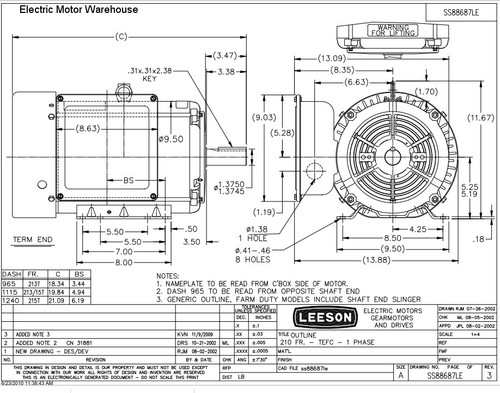

• Frame / Diameter: NEMA 215T Frame
• Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It is equipped with Class F insulation and a service factor of 1.0 without overload protection. Wiring diagrams are provided on the motor nameplate for ease of connection.

Warranty

1 Year Manufacturer Warranty
