140684.00 Leeson | 7.5 hp 3450 RPM 213T Frame TEFC 208-230 Volts
(No reviews)
Write a Review
Write a Review
Leeson
140684.00 Leeson | 7.5 hp 3450 RPM 213T Frame TEFC 208-230 Volts
$1,972.25
$1,490.75
SKU
140684
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
208/230V
Horsepower
7-1/2 HP
RPM
3450
Phase
Single Phase
Frame
213T
Enclosure
TEFC
Hertz
60 Hz
Amperage
32.0 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class F
Mounting
Rigid Base
140684.00 Leeson | 7.5 hp 3450 RPM 213T Frame TEFC 208-230 Volts

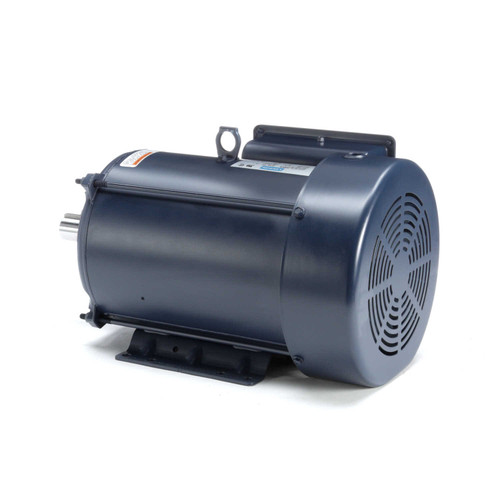

This Leeson 7.5 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It serves as a direct replacement for motors with similar specifications, suitable for various industrial and HVAC equipment.
Key Specifications
- Horsepower: 7.5 hp
- RPM: 3450
- Voltage: 208-230 Volts
- Amperage: 32.0 amps
- Enclosure: Totally Enclosed Fan Cooled (TEFC)

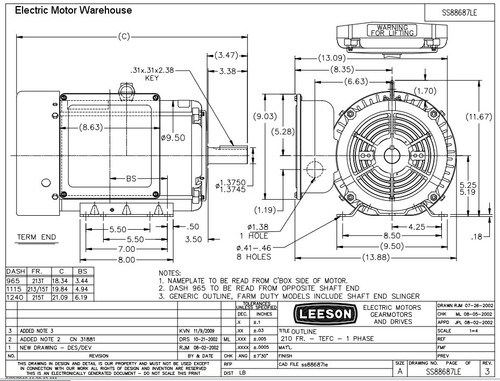

- Frame / Diameter: NEMA 213T Frame
- Shaft Dimensions: Keyed shaft, 1 3/8" diameter x 3 3/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It is equipped with Class F insulation and ball bearings for enhanced durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 208/230V |
| Horsepower | 7-1/2 HP |
| RPM | 3450 |
| Phase | Single Phase |
| Frame | 213T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 32.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
Related Products
sale
Sold out

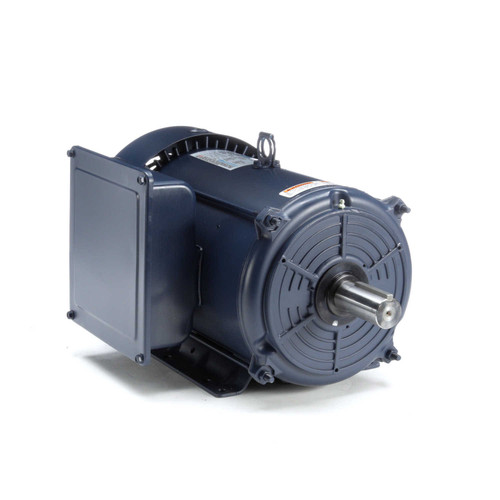

140685.00 Leeson | 10 hp 3450 RPM 215T Frame TEFC 208-230 Volts
