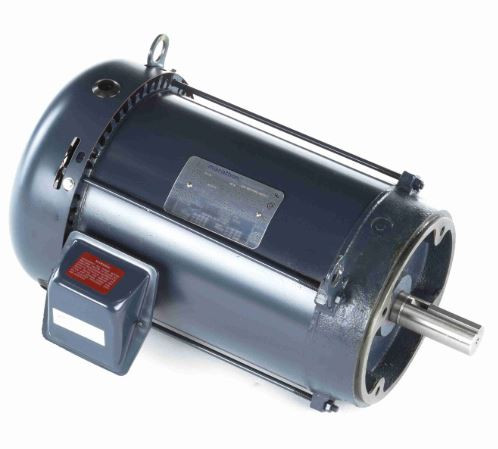

GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor
GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor

Marathon

GT1318A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (No Base) 230/460V Marathon Electric Motor

(No reviews) Write a Review
$1,237.00
$1,025.95
SKU GT1318A
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 23.6/11.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description



  • 10 hp 3600 RPM, 23.6/11.2 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 - overload protection = None
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

215TTFBD6004 Replaces Leeson 171854.60

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 23.6/11.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
