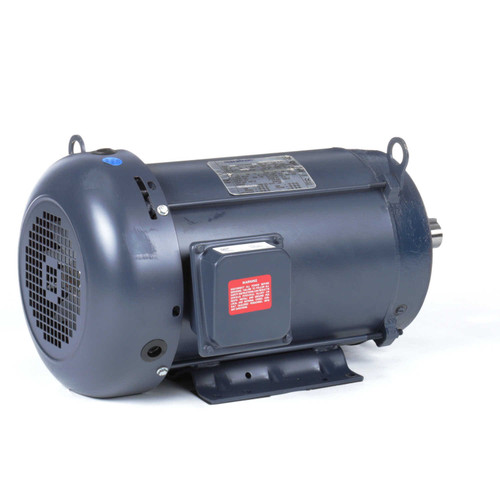

GT1218A Marathon 10 hp 3600 RPM 215TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor
The GT1218A is a general-purpose, three-phase electric motor designed for industrial applications requiring a 10 hp motor with a C-face mount. It replaces Leeson model C215T34FK15AA (170168.60) and features a rigid base for stable installation.
Key Specifications
- Horsepower: 10 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 23.6/11.8 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 215TC

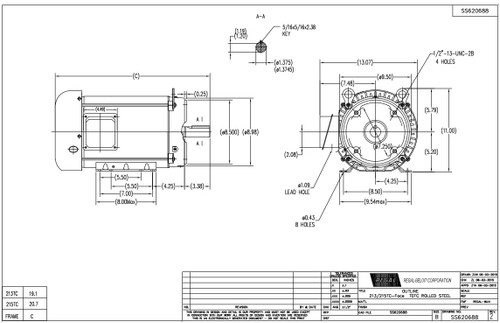

- Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base mount combined with a C-face for versatile installation options. The shaft includes a keyway for secure coupling, and threaded bolt holes on the face allow for direct mounting of pumps or gearheads. A wiring diagram is provided on the motor nameplate for easy electrical connections.
Cross Reference
- Leeson C215T34FK15AA, 170168.60
Warranty
1 Year Manufacturer Warranty
