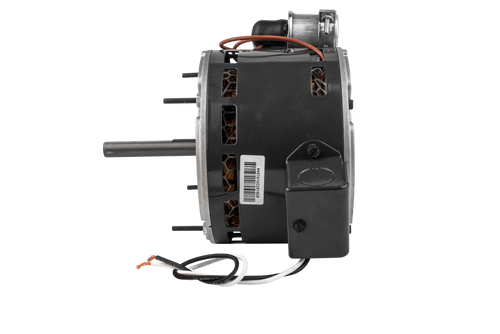

100133 Loren Cook Vent Fan Motor 1/8 hp 1600 RPM 115V

100133 Loren Cook Vent Fan Motor 1/8 hp 1600 RPM 115V

This Loren Cook replacement vent fan motor is a direct aftermarket substitute manufactured by Nidec, designed to fit and perform reliably in ventilation fan applications. It replaces model number 100133 and compatible cross references, ensuring seamless integration with existing systems.

Key Specifications

• Horsepower: 1/8 HP
• RPM: 1600
• Voltage: 115V
• Amperage: 1.7 Amps
• Frame / Diameter: 5-5/8" Diameter
• Shaft Dimensions: 1/2" x 3" with flat
• Rotation: Clockwise (CW) facing the shaft

Product Features & Fitment

The motor features a 4.06" body length excluding the shaft and is designed for clockwise rotation when facing the shaft end. It is a direct aftermarket replacement compatible with multiple cross-reference part numbers, facilitating straightforward installation without modification.

Warranty

1 Year Manufacturer Warranty
