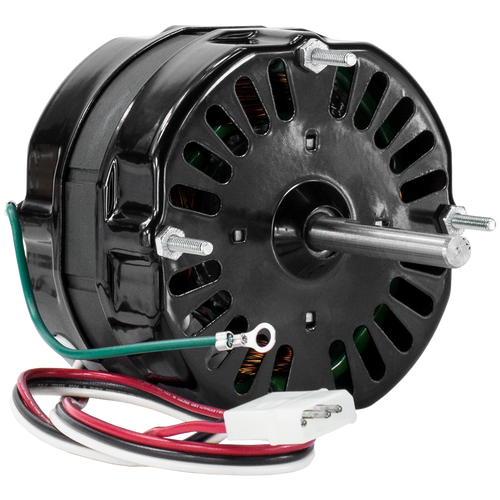

615054 Loren Cook Vent Fan Motor 1/16 hp 1550 RPM 2 Speed 115 Volts

615054 Loren Cook Vent Fan Motor 1/16 hp 1550 RPM 2 Speed 115 Volts

This replacement vent fan motor is designed for Loren Cook Gemini GC/GN 320 and 340 series vent fans. It serves as a direct aftermarket substitute, ensuring reliable performance in ventilation applications requiring dual-speed operation.

Key Specifications

• Horsepower: 1/16 hp
• RPM: 1550
• Voltage: 115 Volts
• Amperage: 2.2 amps
• Frame / Diameter: 4.37" diameter motor
• Shaft Dimensions: 3/8" diameter x 2.50" length with flat on shaft
• Rotation: Clockwise (CW) shaft end

Product Features & Fitment

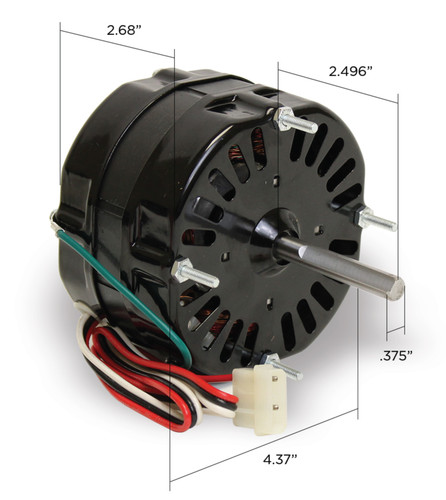

The motor features a compact design with a thickness of 2.68" excluding the shaft. It mounts using four studs arranged diagonally with a 3.9" on-center measurement, facilitating straightforward installation in compatible vent fan housings. This two-speed motor offers versatility for varying airflow requirements.

Cross Reference

• Gemini GC/GN 320, 340 Vent Fans

Warranty

1 Year Manufacturer Warranty
