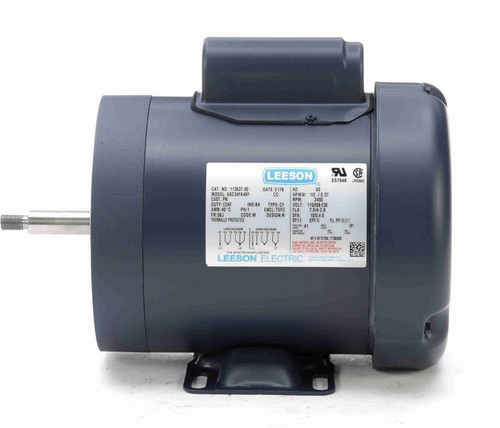

113637.00 Leeson 1/2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor

SKU:
113637
Weight:
26.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $419.00
Now: $354.70
Adding to cart… The item has been added
  • 1/2 hp 3600 RPM, 7.6/4.0-3.8 amps115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
  • NEMA 56J Frame Threaded Shaft 5/8" Diameter
  • Service Factor: 1.6, Overload Protection = Auto
  • Rigid Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Jet pump motor with a C-face mount. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 113637.00
