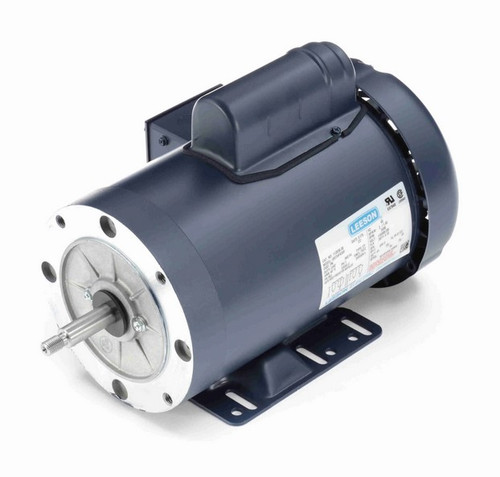

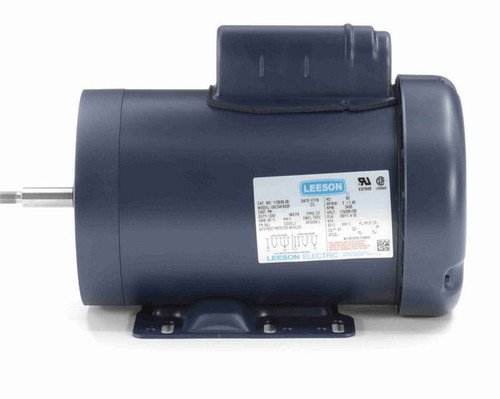

113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor
113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor
113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor
113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor
113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor
113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor

Leeson

113959.00 Leeson 2 hp 3600 RPM 115/208-230V 56J Frame (Rigid Base) TEFC 1-Phase Jet Pump Motor

(No reviews) Write a Review
$801.55
$678.96
SKU 113959
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Frame 56J
Enclosure TEFC
Hertz 60 Hz
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 3600 RPM, 20.0/11.4-10.0 amps115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
  • NEMA 56J Frame Threaded Shaft 5/8" Diameter
  • Service Factor: 1.0, Overload Protection = Auto
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Jet pump motor with a C-face mount. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 113959.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 2 HP
RPM 3600
Phase Single Phase
Frame 56J
Enclosure TEFC
Hertz 60 Hz
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
