- 2 hp 3600 RPM, 20.0/11.4-10.0 amps115/208-230 Volts 60 Hz. Capacitor Start 1-Phase Motor
- NEMA 56J Frame Threaded Shaft 5/8" Diameter
- Service Factor: 1.0, Overload Protection = Auto
- No Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty

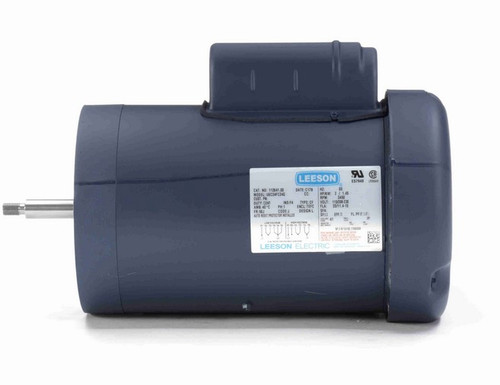

Jet pump motor with a C-face mount. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 113641.00
