- 1 1/2 hp 3600 RPM, 15.4/8.4-7.7 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload Protection = Auto
- No Base, Reversible, Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty

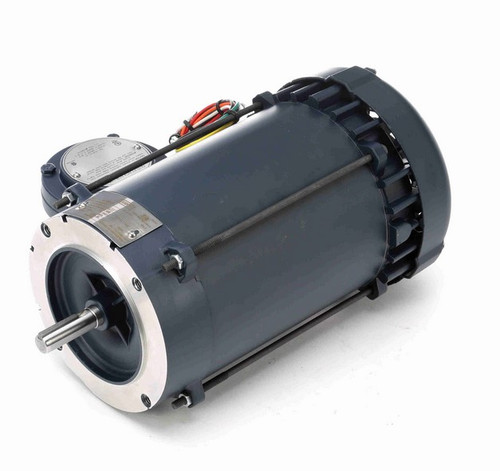

Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.114424.00
