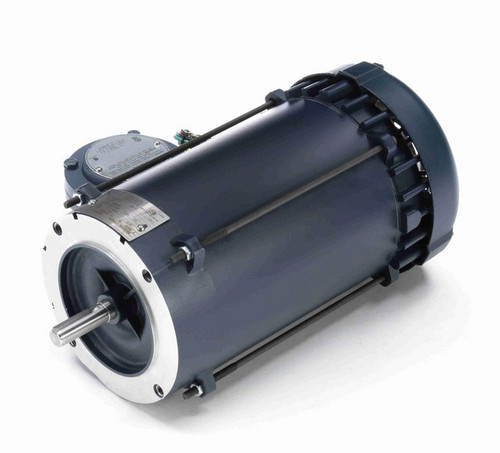

114425.00 Leeson 2 hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor

114425.00 Leeson 2 hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor

This Leeson 2 horsepower, 3600 RPM single-phase motor is designed for hazardous environments requiring explosion-proof equipment. It features a capacitor start and a C-face mount, making it suitable for industrial applications where safety and reliability are critical.

Key Specifications

• Horsepower: 2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 20.0/10.8-10.0 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor is explosion-proof, rated for Class I Groups C & D and Class II Groups F & G hazardous locations, with a T3C temperature code. It mounts via a C-face with bolt holes spaced 3 3/4" on center across the shaft. The motor does not include a base and features an auto overload protection system. Wiring diagrams are provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
